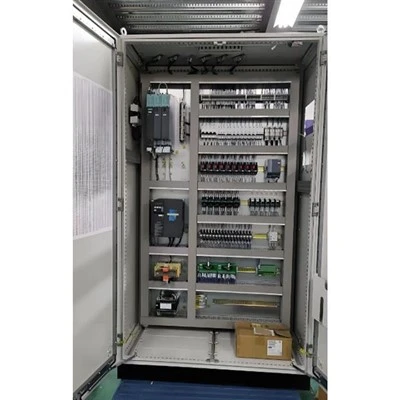

Control Cabinet a Wɔde Di Dwuma

Amanneɛbɔ Industrial Control Cabinet Yɛfoɔ

Yɛyɛ high-quality custom control cabinets ma OEM mfiri, mfiridwuma automation, tumi kyekyɛ, ne anyinam ahoɔden nhyehyɛe. Efi prototype fabrication so kosi mass production so no, yɛde precision-engineered enclosures a DFM mmoa ntɛmntɛm, katee quality inspection, ne wiase nyinaa export osuahu ma.

Parameter a wɔde kyerɛ

Abɔnten so Kɛse	1000800300
Korɔ	Adaka a Wɔkyekyɛ
Atadeɛ	1.5mm dade krataa

Nea Enti a Wiase Nyinaa OEMfo Paw Yɛn Control Cabinets

Precision Manufacturing ma Pɛpɛɛpɛ Component Fit

Wɔde CNC laser cutting ne precision bending na ɛyɛ cabinet biara de hwɛ hu sɛ ne nsusuwii yɛ pɛpɛɛpɛ na wɔayɛ no seamless.

Wɔasi ama Bere Tenten-Mfiridwuma mu Ahotoso

Yɛde premium awɔw-dade a wɔabobɔw, dade a ɛnyɛ den 304/316L, anaa aluminium a wɔde afra a wɔde powder a ɛyɛ den a wɔde kata so ne ayaresa a ɛko tia nsɛe-a ɛka bom di dwuma de hwɛ hu sɛ ɛyɛ adwuma tenten wɔ mfiridwuma mu mmeae a emu yɛ den.

Nneɛma a Wɔde Yɛ Adwuma a Ɛyɛ Nsakrae ma Dwumadi Biara

Efi enclosure dimensions ne mounting plates so kosi HMI cutouts, cable entries, cooling systems, locks, ne surface finishes so no, wobetumi ayɛ cabinet biara sɛnea wopɛ pɛpɛɛpɛ.

Strict Quality Inspection Ansa na wɔde amena

Wɔyɛ enclosure biara nhwehwɛmu wɔ dimensional, welding verification, coating nhwehwɛmu, grounding checks, door alignment testing, ne IP sealing verification ansa na wɔde ahyɛ mu.

Engineering Mmoa fi Design kosi Production so

Yɛn mfiridwumayɛfo hwɛ mfonini biara mu ansa na wɔayɛ, na wɔde DFM nyansahyɛ ahorow ma sɛnea ɛbɛyɛ a wobetumi ayɛ no atu mpɔn, wɔbɛtew ɛka so, na wɔakwati asiane ahorow a ɛwɔ ne yɛ mu.

Nneɛma a Wɔde Yɛ Adwuma

Ɔfasu-Mount Control Cabinets

Wɔayɛ ama compact automation units ne space-constrained industrial setups, yɛn ɔfasu-mounted enclosures ma rigidity a ɛkorɔn ne flexible emu nhyehyɛe options.

Nsɛm a Wɔakyerɛkyerɛ mu:Ahobammɔ a ɛkɔ soro kodu IP66 / NEMA 4, 12, 13; Carbon Dade anaa Dade a Ɛnyɛ Den 304/316L.

Nneɛma Titiriw a Ɛwɔ Hɔ:Seamless polyurethane (PU) foam gasket, digrii 110 kosi digrii 180 a wɔde asie hinge, galvanized mounting plate, ne ɔpon nhyehyɛe a wotumi dannan.

Nea eye sen biara ma:PLC nhyehyɛe nketewa, terminal junction boxes, motor starter panels, ne localized control stations.

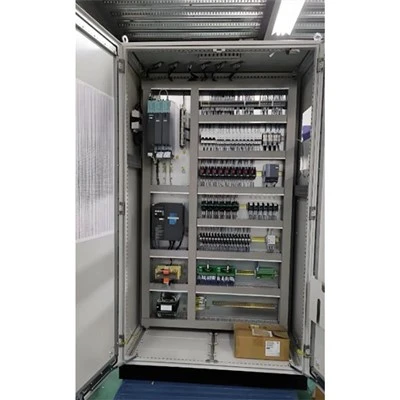

Fam-Gyinabea & Modular Baying Enclosures

Wɔayɛ no ama tumi a emu yɛ duru-adwuma a wɔkyekyɛ ne akɛse-a ɛyɛ automation architectures a ɛhwehwɛ sɛ wɔde component ahoɔden kɛseɛ di dwuma.

Nsɛm a Wɔakyerɛkyerɛ mu:Ahobammɔ a ɛkɔ soro kodu IP55 / IP65; Static adesoa tumi a ɛkɔ soro kodu kilogram 1,500.

Nneɛma Titiriw a Ɛwɔ Hɔ:Multi-folded profile frame (9-fold / 16-fold structure) a ɛhwɛ hu sɛ torsional stiffness a ɛsen biara; modular baying nhyehyɛe a ɛma kwan ma seamless afã-ne-afã cabinet ntrɛwmu; 3-point lock nhyehyɛe ahorow.

Nea eye sen biara ma:Centralized PLC racks, Variable Frequency Drives (VFD) sikakorabea, motor control centers (MCC), ne afifide kyekyɛ ntam nkitahodi.

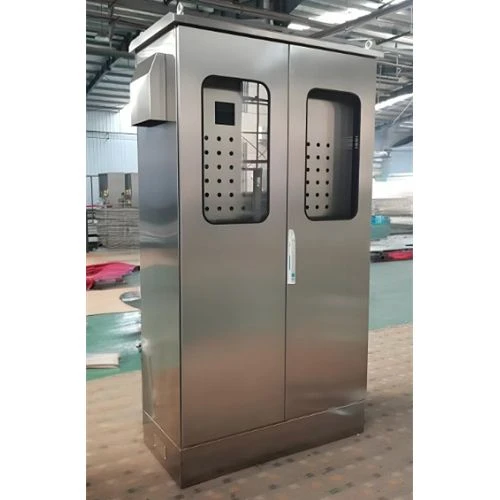

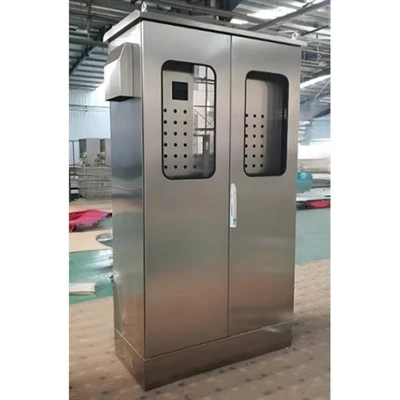

Dade a ɛnyɛ den a wɔde di dwuma (304 / 316L) .

Wɔasi no titiriw maa mmeae a basabasayɛ wom a ɛho hia sɛ wɔko tia nsɛe kɛse na wɔhohoro ahotew mu denneennen.

Nsɛm a Wɔakyerɛkyerɛ mu:Ahobammɔ a ɛkɔ soro kodu IP66 / IP69K / NEMA 4X; Nneɛma a wobetumi apaw awie no bi ne #4 Brushed, Satin, anaa Passivated awie.

Nneɛma Titiriw a Ɛwɔ Hɔ:High-grade AISI 304 anaa 316L dade a ɛnyɛ den; ɔdan atifi a ɛkɔ fam (ahotew ho nhyehyɛe) na amma nsu ankɔ soro; nnuru-a ɛko tia EPDM/PU nsɔano; crevice-free a ɛkɔ so tig welding.

Nea eye sen biara ma:Aduan & anonne a wɔyɛ, nnuruyɛ adwumayɛbea, nnuru a wɔde yɛ adwuma, ne po/po so nneɛma a wɔde si hɔ.

Console & Nneɛma a Wɔde Di Dwuma

Ergonomically engineered enclosures a wɔayɛ ama nnipa-mfiri nkitahodi, monitoring, ne operator control centers.

Nsɛm a Wɔakyerɛkyerɛ mu:Ahobammɔ a ɛkɔ soro kodu IP54 / IP55; Multi-segmented desktop ne monitor mounting nhyehyeɛ.

Nneɛma Titiriw a Ɛwɔ Hɔ:Gas-strut boa soro anoano, cable ducting akwan a wɔaka abom, akyi kwan a wotumi yi fi hɔ, ne mframa a ɛkɔ so akwan a wɔayɛ no yiye ama ɔhyew-a ɛma ɔhwɛfo ne PC ahorow.

Nea eye sen biara ma:SCADA oprehyɛn dan, CNC control stations, anyinam ahoɔden adwumayɛbea a wɔhwɛ so, ne kar akwan sohwɛ mmeae.

Beae a Asiane & Ɛpae-Adanse a Wɔabɔ

Nnua a emu yɛ duru-a wɔayɛ no sɛnea ɛbɛyɛ a ɛremma ogyaframa a ɛwɔ mu no nsɔ wim tebea a ogya tumi hyew a atwa ho ahyia no.

Nsɛm a Wɔakyerɛkyerɛ mu:ATEX / IECEx / Class I Division 2 parameters a wodi so; Ogya a Ɛntumi Nhyew (Ex d), Ahobammɔ a Ɛkɔ Anim (Ex e), anaasɛ Wɔahohoro/Wɔahyɛ Nhyɛso (Ex p).

Nneɛma Titiriw a Ɛwɔ Hɔ:Cast aluminium anaa dade a ɛnyɛ den a ɛyɛ den adansi, pɛpɛɛpɛ-ogya akwan a wɔde mfiri ayɛ, ɔtopae-sɔhwɛ hinge a emu yɛ duru, ne adansedi krataa a ɛkyerɛ sɛ ɛpae-adanse cable glands.

Nea eye sen biara ma:Oil & gas refineries, petrochemical processing, mmeae a wɔde aburow di dwuma, ne mmeae a wɔde paint petepete.

Nnwuma mu Nneɛma a Wɔde Di Dwuma

Mfiridwuma mu Nneɛma a Wɔde Yɛ Adwuma & Robotics

01/

Nnwuma a Wɔtaa De Di Dwuma

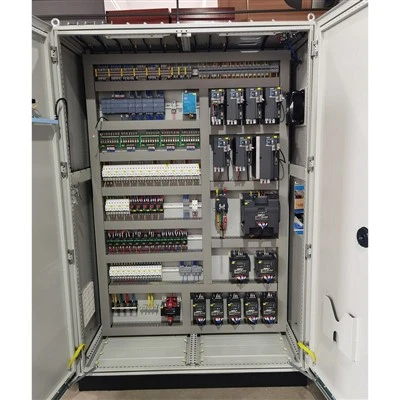

PLC Control Panels a Wɔde Di Dwuma
Robot Controller Nkukuo a Wɔde Di Dwuma
CNC Mfiri a Wɔde Di Dwuma Ho Nhyehyɛe

02/

Nneɛma a Wɔkamfo Kyerɛ

High-density wiring nhyehyɛe ma automation nhyehyɛe a ɛyɛ den
Precision CNC-mfiri a wɔatwa ama HMIs ne mfiri a wɔde di dwuma
EMC shielding de tew anyinam ahoɔden a ɛtwetwe nneɛma so

03/

Aduan & Nsã Ho Nneɛma a Wɔyɛ

Nnwuma a Wɔtaa De Di Dwuma
Bottling & Nneɛma a Wɔde Hyehyɛ Ntrɛwmu
Mixing & Blending Nneɛma a Wɔde Yɛ Adwuma
CIP/SIP Nkonimdi Panel ahorow

04/

Nneɛma a Wɔkamfo Kyerɛ

304 anaa 316L dade a ɛnyɛ den adansi
Hygienic sloped ɔdan atifi nhyehyɛe
IP69K ahohoro ho banbɔ

05/

Ahoɔden a Wɔyɛ Foforo & Abɔnten So Nneɛma a Wɔde Yɛ Adwuma

Nnwuma a Wɔtaa De Di Dwuma
Owia Tumi a Wɔkyekyɛ
PV Combiner Nnaka a Wɔde Yɛ Nneɛma
Mframa Turbine Control Systems a Wɔde Di Dwuma

06/

Nneɛma a Wɔkamfo Kyerɛ

IP65 kosi IP69K wim tebea ho ahobammɔ
UV-a ɛko tia abɔnten powder a wɔde kata so
Anti-condensation heaters ne mframa nhyehyɛe

Custom Control Cabinet Nneɛma a Wɔpaw

Amanneɛbɔ a Wɔpaw	Nneɛma a Wobetumi Apaw a Ɛwɔ Hɔ
Atadeɛ	Carbon dadeɛ / SS304 / SS316L / Aluminium a wɔde yɛ adwuma
Nsusuwii ahorow	Wɔayɛ no sɛnea wɔpɛ koraa
Ahobammɔ	IP54-IP69K na ɛwɔ hɔ
Ahosuo	RAL Kɔla biara
Ɔpon ano	Obiako / Mmienu
To mu	Standard / Quarter Dan / Swing Nsa
Nneɛma a wɔatwa	HMI / Fan / Nhama Gland / Nkitahodi
Onwini a wɔde ma	Fan / AC / Ɔhyew a Wɔde Sesa
Mprɛte a Wɔde Si So	Wɔayɛ no sɛnea wɔpɛ
Cable a Wɔde Hyehyɛ Mu	Atifi / Ase / Afã
Nneɛma a wɔde boa	DIN Keteke / LED / Socket / Kotoku

Nneɛma a Wɔyɛ

Pɛpɛɛpɛ CNC Laser Twitwa

High-speed fiber laser cutting hwɛ hu sɛ anoano a ɛho tew ne mmue a ɛyɛ pɛpɛɛpɛ ma HMI panels, cable glands, cooling systems, ne anyinam ahoɔden afã horow.

CNC Bending a Wɔde Yɛ Adwuma

Automated CNC press breki guarantee daa bending pɛpɛɛpɛ ne cabinet squareness.

Welding a Wɔde Yɛ Pɛpɛɛpɛ

Welders a wɔn ho akokwaw yɛ TIG ne MIG welding a ɛkɔ so na ama wɔanya adan a ɛyɛ den a wɔde wie a ɛyɛ mmerɛw.

Powder a Wɔde Kata So a Wɔde Yɛ Adwuma

Multi-stage pretreatment a wɔde electrostatic powder coating aka ho no ma ɛko tia nsɛe a ɛkorɔn na ɛma ɛyɛ nea ɛtra hɔ kyɛ-.

PU Gasket Foaming a Ɛyɛ Fɛ

Automated polyurethane foaming ma apon ano nsɔano a nsuo ntumi nkɔ mu a ɛnyɛ den a ɛkura IP ahobanbɔ a ɛkyɛ-kɔ so.

Nhyiam & Nhwehwɛmu a Etwa To

Wɔhwɛ kabinet biara mu yiye ansa na wɔde amena de ahwɛ ahu sɛ ne nsusuwii yɛ pɛpɛɛpɛ na ɛyɛ adwuma yiye.

Adeyɛ a Wɔde Hwɛ Nneɛma a Ɛyɛ Paara So

Nhwehwɛmu Afahyɛ	Nea Yɛhwehwɛ Mu	Adetɔfo Mfaso
Nneɛma a Wɔde Ba Nhwehwɛmu (IQC) .	Hwɛ sɛ dade no mu duru, nneɛma a wɔde yɛ adwuma (CRS, SS304, SS316L), ɛyɛ petee, ne nea wɔde ma no adansedi nkrataa.	Ɛhwɛ hu sɛ structure ahoɔden ne nneɛma a ɛyɛ pɛpɛɛpɛ.
Laser Twitwa & CNC Bending Nhwehwɛmu	Fa nnwinnade a wɔde susuw nneɛma a wɔahyɛ da ayɛ no hwɛ nsusuwii, tokuru no gyinabea, bending angles, ne tolerances nyinaa.	Guarantees pɛpɛɛpɛ fit ma anyinam ahoɔden afã horow na ɛma nhyiam yɛ mmerɛw.
Welding & Nneɛma a Wɔde Yɛ Nneɛma Ho Nhwehwɛmu	Hwɛ sɛnea weld no te, sɛnea frame no yɛ ahinanan, sɛnea ɔpon no hyia, ne sɛnea ɔdan no te.	Ɛma wonya enclosure a ɛyɛ den a ɛyɛ adwuma yiye na ɛyɛ adwuma tenten.
Surface Treatment Nhwehwɛmu a Wɔyɛ	Sua powder coating thickness (80–120 μm), yɛ adhesion sɔhwɛ, na hwɛ kɔla a ɛyɛ pɛpɛɛpɛ ne wie su.	Ɛde ahoɔden a ɛkyɛn so a ɛko tia nsɛe ne adwumayɛfo anim.
Nhyiamu Nhwehwɛmu	Hwɛ sɛnea ɔpon no yɛ adwuma, hinge, locks, mounting plates, cable entry plates, ne nneɛma a wɔde boa.	Ɛhwɛ hu sɛ mfiri afã horow nyinaa yɛ adwuma yiye ansa na wɔde akɔma.
Ingress Ahobammɔ Ho Nhwehwɛmu	Hwɛ apon ano nsɔano, PU foam gaskets, nsɔano no ani, ne enclosure structure. IP sɔhwɛ wɔ hɔ bere a wɔabisa.	Ɛkura mfutuma ne nsuo ho banbɔ a wotumi de ho to so ma nneɛma a atwa yɛn ho ahyia a ɛyɛ den.
Grounding & Electrical Ahobammɔ Nhwehwɛmu	Hwɛ sɛ grounding kɔ so wɔ enclosure, ɔpon, ne mounting plate ntam wɔ baabi a ɛfata.	Ɛma anyinam ahoɔden ahobammɔ tu mpɔn na ɛboa ma wodi amanaman ntam gyinapɛn ahorow so.
Nhwehwɛmu a Etwa To & Nneɛma a Wɔde Gu Mu (OQC) .	Yɛ 100% aniwa nhwehwɛmu, hwɛ sɛnea nsusuwii ahorow no te sɛ mfonini ahorow a wɔapene so, fa nneɛma a ɛbɔ ho ban gu so, na fa kabinet no bɔ ho ban ma wɔde kɔ amannɔne.	Ɛhwɛ hu sɛ nkuku ahorow no du hɔ a wɔasiesie wɔn ho sɛ wɔde besisi hɔ a asiane a ɛwɔ akwantu mu no sua koraa.

Adansedi nkrataa & Mmara sodi

UL 508A / UL 50 Gyinapɛn ahorow

Wɔayɛ no sɛnea ɛne UL ahwehwɛde ahorow a ɛfa mfiridwuma mu control panels ho hyia, na ɛhwɛ hu sɛ wɔbɛyɛ afuw mu nhwehwɛmu ne clearance a ɛkɔ so yiye wɔ Amerika Atifi fam.

CE Mmara sodi

Ɛne EU Low Voltage Akwankyerɛ (LVD 2014/35/EU) ne Electromagnetic Compatibility (EMC 2014/30/EU) Akwankyerɛ no hyia koraa.

IEC 60529 Ahobammɔ a Wɔde Bɔ Nneɛma a Wɔde Kɔ Mu

IP55, IP65, IP66, ne IP69K dodow a wɔagye atom a wɔde afiri a ɛto so abiɛsa-a wɔagye atom wɔ aduruyɛdan mu sɔhwɛ amanneɛbɔ ahorow akyi.

NEMA 250 Gyinapɛn

Wɔayɛ no sɛnea ɛbɛyɛ a ɛbɛdi NEMA Type 1, 3R, 4, 4X, ne 12 akwankyerɛ a ɛfa nneɛma a atwa yɛn ho ahyia ho.

ISO 9001:2015 & ISO 14001:2015

Certified Quality Management and Environmental Management Systems a ɛhwɛ nneɛma a wɔyɛ nyinaa so.

RoHS & REACH a ɛne no hyia

Powder a wɔde kata so, rɔba gasket, plastic latches, ne emu nneɛma nyinaa nni nneɛma a asiane wom a wɔabara.

FAQ

Q: IP ne NEMA ratings bɛn na wo custom control cabinets betumi anya?

A: Yɛyɛ enclosures a ɛne IP55 hyia kosi IP69K (IEC 60529) ne NEMA 1, 3R, 4, 4X, ne 12 (NEMA 250). Sɛ́ ebia wuhia dan mu mfutuma ahobammɔ anaa abɔnten nhyɛso a ɛkorɔn-nhyɛso ahohoro ne nsɛe a ɛko tia no, yɛde gyinapɛn ahorow a wɔagye atom a nnipa a wɔto so abiɛsa-adwumayɛbea sɔhwɛ amanneɛbɔ ahorow boa ma.

Q: Nneɛma bɛn na wode ma ma custom cabinet fabrication?

A: Yɛde Cold-Rolled Carbon Steel (a wɔde powder a ɛyɛ den akata so), Stainless Steel 304 ne 316L (ma ahotew a ɛkorɔn-po mu nneɛma), ne Aluminum Alloys (5052/6061) a ɛyɛ hare, nsɛe-resistant applications na ɛyɛ cabinets.

Asɛmmisa: So wo control cabinets no betumi adi North American UL 508A gyinapɛn ahorow so?

A: Yiw. Yɛyɛ kabinet nhyehyɛe, mprɛte a wɔde si so, ne asase so nhyehyɛe a edi UL 508A ne UL 50 nhyehyɛe akwankyerɛ so pɛpɛɛpɛ. Yɛde UL-agye atom sealing gaskets, ogya-retardent nneɛma, ne dedicated grounding studs di dwuma de hwɛ hu sɛ wo panel nhyiam a etwa to no twa afuw mu nhwehwɛmu mu yiye wɔ USA ne Canada.

Asɛmmisa: Dɛn ne wo bere a wotaa de di dwuma ma amanne kwan so control cabinet orders?

A: Engineering nhwehwɛmu ne DFM feedback gye nnɔnhwerew 24–48. Mpɛn pii no, nhwɛsode a wɔyɛ no gye adwuma nnafua 7 kosi 10. Wɔtaa de mass production batch orders mena wɔ adapɛn 3 kosi 4 mu, a egyina cutout complexity, structure customization, ne finish ahwehwɛde ahorow so.

Asɛmmisa: Ɔkwan bɛn so na wohyɛ bɔ sɛ nsuo ne mfutuma ntumi nkɔ nsɔano wɔ amanne kwan so-mfiri a wɔatwitwa so?

A: Ɔpon nnua nyinaa ne cutouts a wɔayɛ no sɛnea wɔpɛ nyinaa de CNC automated polyurethane (PU) gasket foaming anaasɛ EPDM nsɔano a ɛkɔ so di dwuma. Nsuo PU no trɛw na ɛsa no yareɛ tẽẽ wɔ dadeɛ no ani, na ɛyɛ nsɔano a enni nsɔano, a ɛnyɛ nkwaa-a ɛkura elasticity ne IP65/IP66 mudi mu wɔ berɛ tenten-ɔhyeɛ kyinhyia mu.

Q: So wubetumi de DFM (Design for Manufacturability) mmoa ama sɛ yɛwɔ mfonini ahorow a wɔakyerɛw nkutoo a?

A: Yiw, yɛn mpanyimfo kuw a wɔyɛ dade a wɔde dade ayɛ no gye 2D mfonini (AutoCAD, PDF) ne 3D mfonini (SolidWorks, STEP, IGES). Yɛyɛ DFM nhwehwɛmu a edi mũ de yɛ krataa a wɔde di dwuma yiye, structure bending stability, thermal airflow, ne fabrication costs ansa na yɛayi mfonini ahorow adi ama wɔayɛ.

Asɛmmisa: Nneɛma bɛn na wode ma wɔ abɔnten so aduruyɛ a ɛko tia-nsɛe?

A: Wɔ carbon dade ho no, yɛde multi-stage nnuru hohoro akyi 80–120 μm architectural-grade abɔnten polyester powder coat (UV-resistant, twam nnɔnhwerew 500–1,000 a neutral nkyene petepete sɔhwɛ sɛnea ISO 9227). Wɔ dade a ɛnyɛ den ho no, yɛde mfiri #4 line brushing, electropolishing, anaa nnuru pasivation ma.

Asɛmmisa: So wubetumi adi kan-de afiri a wɔde hwɛ ɔhyew so ahyɛ mu wɔ enclosures no mu?

A: Akyinnye biara nni ho. Yebetumi adi kan-twitwa, ahyɛ nhyehyɛe mu den, na yɛde industrial panel air conditioners, heat exchangers, cooling fan filter units, ne anti-condensation space heaters ahyɛ mu. Yɛsan nso de thermostat wiring brackets ne osu kataso ma abɔnten fan filter cutouts.

Asɛmmisa: Ɔkwan bɛn so na wɔkyekyere nkuku no na amma ansɛe bere a wɔde amanaman ntam po so akwantu no?

A: Wɔhohoro nkukuo mu yie, wɔde ntwea so nkatasoɔ a ɛbɔ ho ban ahyɛ mu, na wɔde PE stretch film a ɛyɛ den a nsuo-absorbing desiccant packs ahyɛ mu. Afei wɔbɔ wɔn ho ban wɔ amanne kwan so fumigation-free plywood nnaka a wɔde high-density EPE foam cushioned mu.

Q: Dɛn ne wo Minimum Order Quantity (MOQ) ma amanne kwan so-asisi enclosures?

A: Sɛ yɛbɛboa engineering nkɔso ne OEM afɛfo, yɛn MOQ ma amanne control cabinets fi ase wɔ 1 afã ma prototype sɔhwɛ. Yɛde volume-tiered bo a wɔatew so ma daa adeyɛ mmirikatu a ɛkɔ so ne batch OEM apam ahorow.

Sɛ́ adwumayɛfo control cabinet manufacturers ne suppliers wɔ China no mu biako, yɛsan nso boa customized service. Yɛsrɛ sɛ ntwentwɛn wo nan ase sɛ wobɛtɔn no kɛse discount control cabinet wɔ stock ha fi yɛn adwumayɛbea. Nneɛma a ɛyɛ papa ne ne bo a ɛba fam wɔ hɔ.
